VS Code Extension [[extension: __Namespace]]

VS Code extension for QMDC — syntax highlighting, LSP integration, views, commands, and settings.

Install from the VS Code Marketplace or Open VSX — search QMDC (publisher mikilabs). Open VSX carries every platform; the Marketplace currently has the macOS build.

Capabilities [[capabilities: NarrativeDoc]]NarrativeDoc

Editor Features [[editor_features: text]]text

The extension provides full IDE support for .qmd.md files:

  • Syntax Highlighting via TextMate grammar
  • Autocompletion for object IDs, Kinds, namespaces, references
  • Hover preview of objects with their fields
  • Go to Definition (Cmd+Click / F12) for [[#id]] references
  • Find All References (Shift+F12) for objects
  • Document Symbols (Cmd+Shift+O) — outline with object hierarchy
  • Workspace Symbols (Cmd+T) — search objects across all files
  • Rename Symbol (F2) — rename ID and update all references
  • Diagnostics — broken links, duplicate IDs, validation errors

Requirements [[requirements: text]]text

The extension bundles the qmdc binary (QMDC Language Server) for each supported platform — no separate installation needed. Install it from the VS Code Marketplace or Open VSX (or sideload the .vsix for your platform) and it works out of the box.

If you need to use a custom build of qmdc (e.g., a development build), override the path in settings:

{
  "qmdc.server.path": "/path/to/custom/qmdc"
}

Views [[views: NarrativeDoc]]NarrativeDoc

QMDC Objects Explorer [[objects_explorer: text]]text

Tree view of workspace objects with grouping by namespace, files, or smart hierarchy.

Shows the hierarchical workspace structure:

  • Workspaces — all QMDC workspaces in the project (multi-root support)
  • Namespaces — logical object groupings
  • Objects — all QMD.md objects with their kinds

Clicking an item opens the object definition. The explorer auto-refreshes on file changes.

  • view_id: qmdcObjects
  • location: activitybar
  • container_id: qmdc-explorer
  • grouping_modes: [namespace, file, smart]

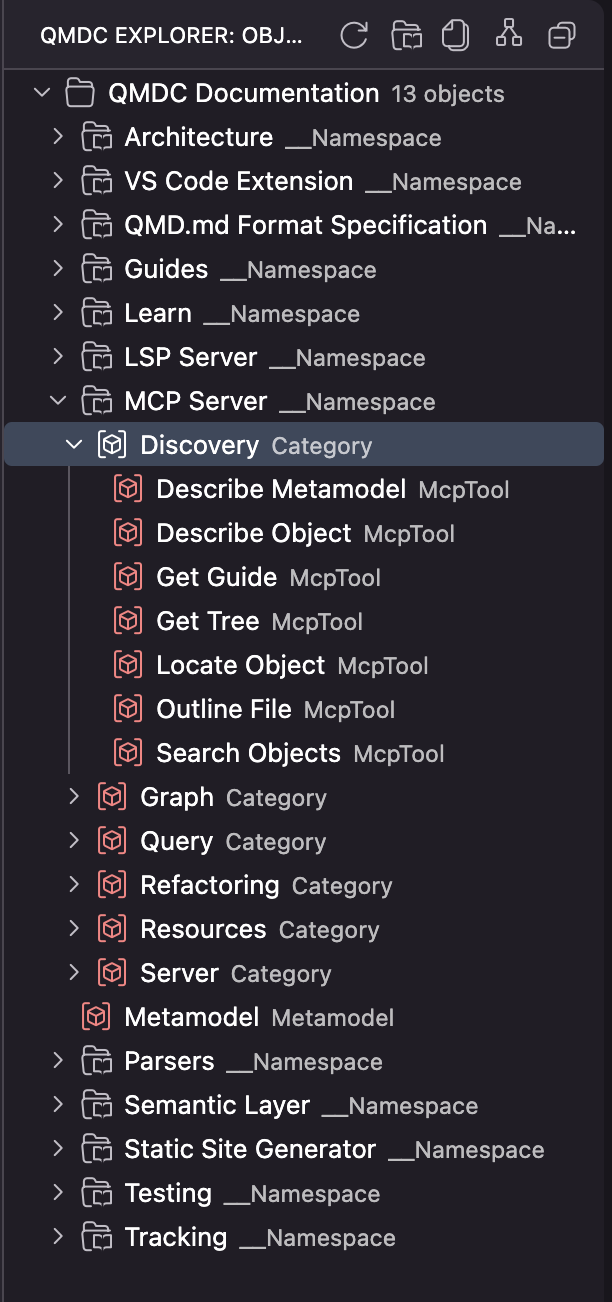

QMDC Objects Explorer tree in the activity bar

QMDC Preview [[preview_panel: text]]text

Webview panel for previewing QMD.md documents with rendered markdown and executed SQL queries.

Opened via the QMDC: Open Preview command. Shows:

  • Rendered markdown with styled formatting
  • Executed table blocks with SQL query results
  • Clickable [[#ref]] links for navigating to definitions (via LSP go-to-definition)
  • Dimmed metadata [[id]] and [[id: Kind]] (hidden via CSS display: none)
  • Mermaid diagrams (mermaid code blocks → SVG, bundled offline via mermaid.min.js)
  • Back/forward navigation (mouse back/forward buttons, Alt+Left/Right)
  • Scroll-to-anchor on link navigation (auto-scroll to target object)

Preview auto-refreshes on document changes.

Rendering logic is extracted into src/preview-renderer.ts with a QueryExecutor interface for testability. Covered by 31 Playwright e2e tests (e2e/preview-render.spec.ts).

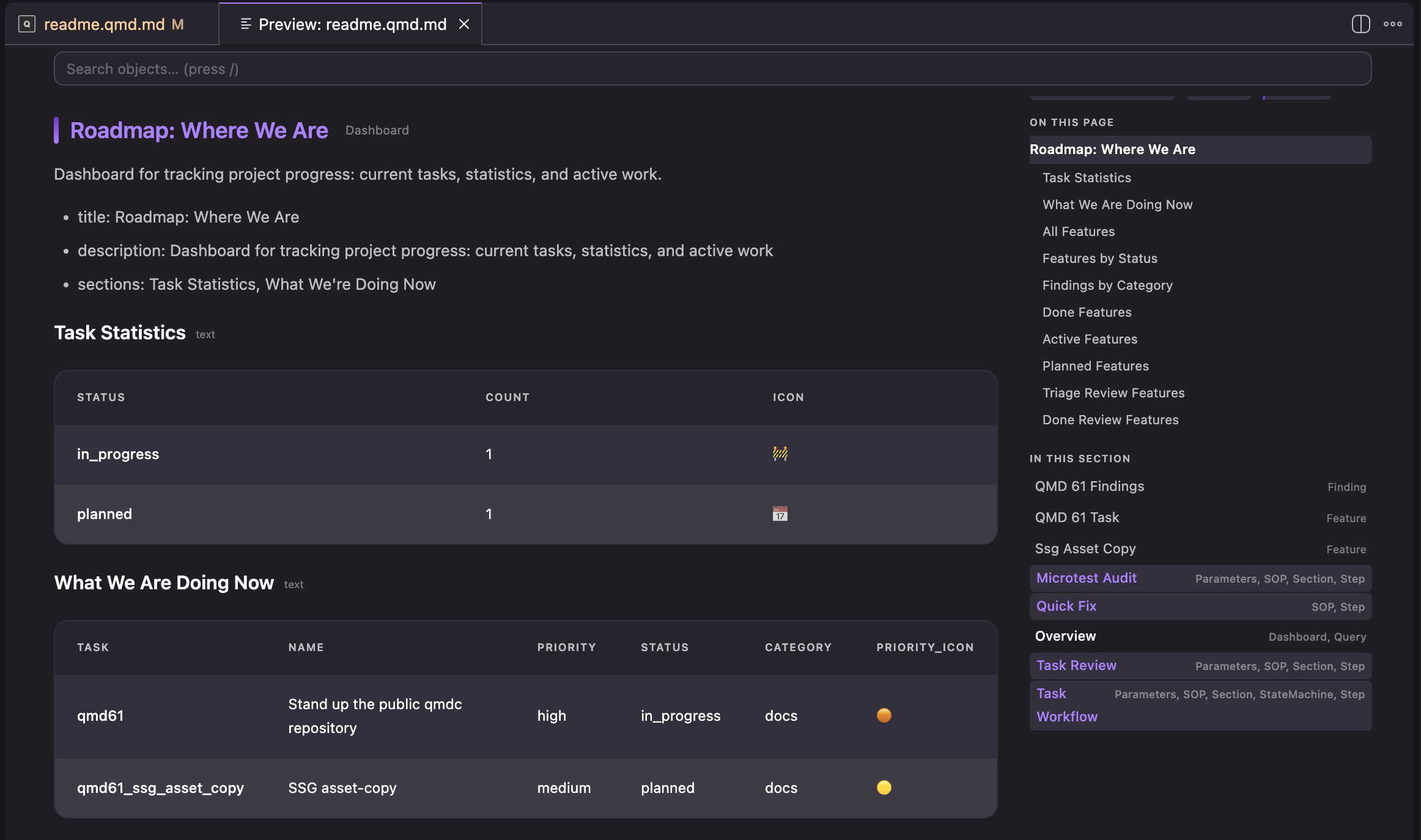

The QMDC rendered preview panel

Settings [[settings: NarrativeDoc]]NarrativeDoc

Server Path [[server_path_setting: text]]text

Path to the qmdc binary.

If empty, uses qmdc from PATH or searches in the workspace.

  • key: qmdc.server.path
  • type: string
  • default: ""

Trace Server [[trace_setting: text]]text

Tracing of communication between VS Code and the QMDC language server.

Levels:

  • off — no tracing
  • messages — message logging

  • verbose — detailed logging

  • key: qmdc.trace.server

  • type: string
  • default: off
  • enum: [off, messages, verbose]

Dim Metadata [[dim_metadata_setting: text]]text

Dims [[id]] and [[id: Kind]] metadata for better readability.

When enabled, metadata is displayed in gray italic so it doesn't distract from the main content.

  • key: qmdc.dimMetadata
  • type: boolean
  • default: true

Show Preview Button [[show_preview_button_setting: text]]text

Shows the Open Preview button in the editor title bar for .qmd.md files.

  • key: qmdc.showPreviewButton
  • type: boolean
  • default: true

Build and Publish [[build_publish: NarrativeDoc]]NarrativeDoc

Platforms [[platforms: text]]text

The extension supports 6 platforms:

  • macOS Apple Silicon (darwin-arm64)
  • macOS Intel (darwin-x64)
  • Linux x64 (linux-x64)
  • Linux ARM64 (linux-arm64)
  • Windows x64 (win32-x64)
  • Windows ARM64 (win32-arm64)

Build Scripts [[build_scripts: text]]text

See qmdc-vscode/package.json scripts section:

  • npm run build — quick build for current platform (dev)
  • npm run package:darwin-arm64 — build for macOS Apple Silicon
  • npm run package:darwin-x64 — build for macOS Intel
  • npm run package:linux-x64 — build for Linux x64
  • npm run package:linux-arm64 — build for Linux ARM64
  • npm run package:win32-x64 — build for Windows x64
  • npm run package:win32-arm64 — build for Windows ARM64
  • npm run package:all — build for all platforms
  • npm run publish:all — publish all platforms to Marketplace

Versioning [[versioning: text]]text

  • npm run bump-version — increment patch version (0.2.0 → 0.2.1)
  • npm run bump-version minor — increment minor version (0.2.0 → 0.3.0)
  • npm run bump-version major — increment major version (0.2.0 → 1.0.0)
  • npm run test:e2e — run Playwright e2e tests for preview rendering

Configuration Files [[config_files: text]]text

  • qmdc-vscode/package.json — extension manifest (contributes, scripts, dependencies)
  • qmdc-vscode/language-configuration.json — language configuration (brackets, comments, auto-closing)
  • qmdc-vscode/syntaxes/qmdc.tmLanguage.json — TextMate grammar for syntax highlighting
  • qmdc-vscode/src/extension.ts — main extension file
  • qmdc-vscode/src/preview-renderer.ts — rendering logic for preview webview (extracted for testability)
  • qmdc-vscode/src/qmdcTreeProvider.ts — QMDC Explorer tree view implementation
  • qmdc-vscode/e2e/preview-render.spec.ts — Playwright e2e tests for preview rendering
  • qmdc-vscode/playwright.config.ts — Playwright configuration
